Navigation and Themes

The Main View

Every profile viewer shares the same layout: the frame list on the left and the source panel on the right, updated live while navigating.

• [1] Frames: One level of the tree at a time — the current node as a pinned parent row (⬑) followed by its children, sorted by cost. Entering a node auto-descends through single-child chains until the next branching point, and going back inverts the auto-descent in one key press.
• [2] Source: A compact information strip (name, tags, costs, and method signature) above the syntax-highlighted source of the selected row, with the frame line marked with ▶.
• Flame Graph: On terminals supporting a graphics protocol (Kitty graphics or Sixel), a flame graph of the whole profile is drawn along the bottom of the screen (see Flame Graph).

The panels are numbered like in LazyGit: the number keys jump straight to a panel, and the movement keys act on the focused one.

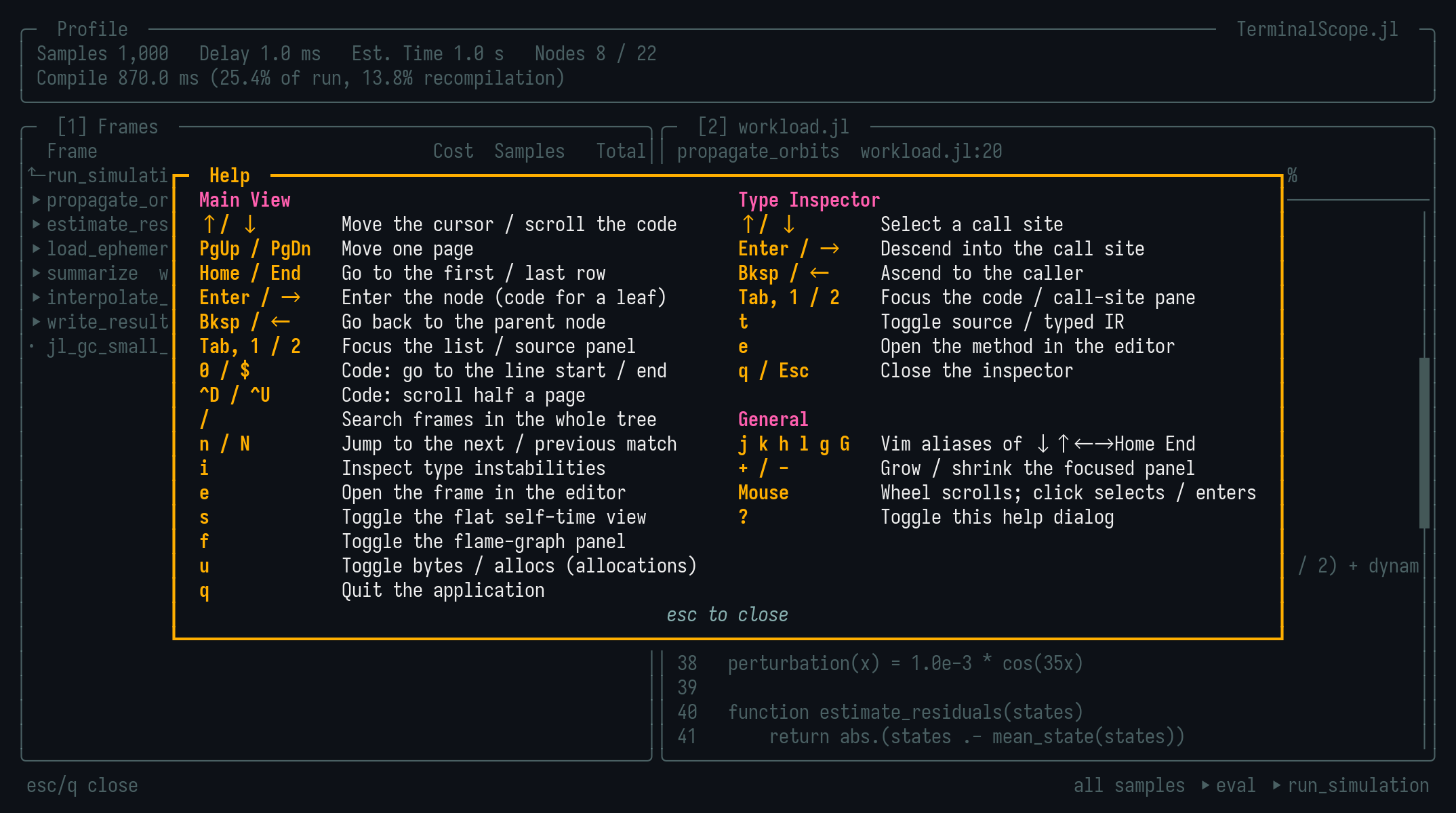

The status bar always shows the most important bindings of the active view, and the ? dialog lists all of them:

Mouse

The mouse is supported as well: the wheel scrolls the panel under the cursor — moving the selection in the lists and the view in the code panes — and a left click focuses the clicked panel, moving the selection to the clicked row. Clicking the selected row again enters it, and a click closes the help dialog.

Over the flame-graph panel, a click selects the clicked frame rectangle in the frame list — and clicking the selected rectangle again enters it — while the wheel ascends and descends the tree.

Flame Graph

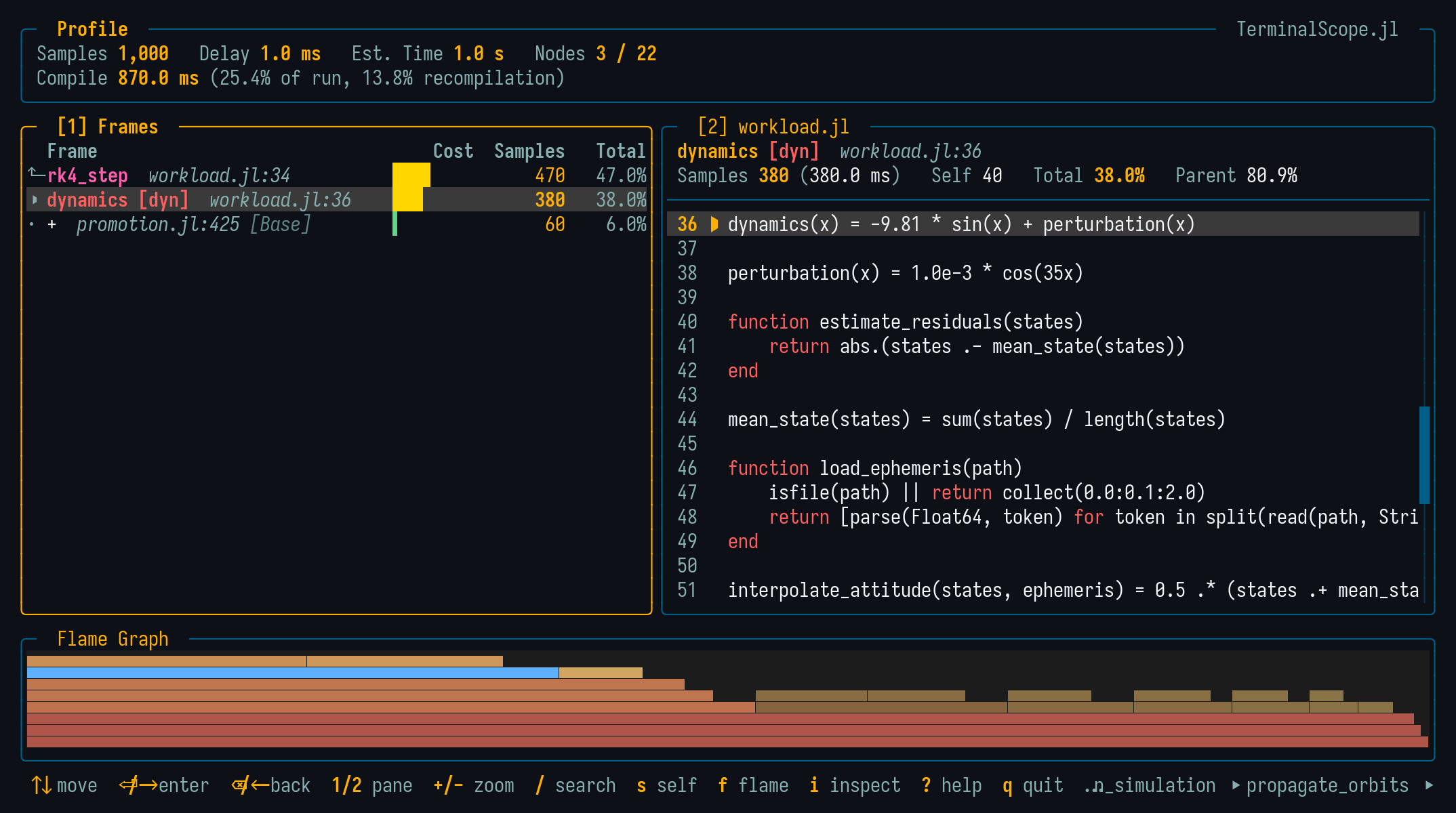

When the terminal supports a graphics protocol — Kitty graphics (Kitty, Ghostty) or Sixel (WezTerm, iTerm2, foot, mlterm) — the runtime, allocation, and inference viewers draw a flame graph of the whole profile along the bottom of the screen: the root at the bottom, the call stacks growing upward, and each frame's width proportional to its inclusive cost.

The colors carry the measurements and the navigation state:

• Each frame is heat-colored by its share of the total cost, on a muted ramp from sand (cheap) through amber to brick red (hot), adapted to the dark and light themes.
• The row selected in the frame list is filled with the theme primary color (cyan), so the flame graph always shows where the selection sits in the global picture.
• The path from the root to the current drill-down level is drawn at full heat with a bright line along its lower edge, and the current subtree keeps its full heat, while the rest of the tree is dimmed toward the background.

When the tree is deeper than the panel fits, a dashed strip along the top edge signals the truncated levels. The f key hides and restores the panel, and it disappears automatically while a panel is maximized with +. On terminals without graphics support, the panel is hidden entirely and the viewers keep the two-panel layout.

Flat Self-Time View

The frame list ranks frames by their inclusive cost while drilling down. Pressing s switches it to a flat list of the hottest frames of the whole tree ranked by their aggregated self cost — the cost spent in the frame itself, excluding its callees — which is the classic way to find the hot leaf functions of a profile.

Occurrences of the same frame (same function, file, and line) anywhere in the tree merge into one row. Enter jumps back into the tree view at the hottest occurrence of the selected row, and s or Backspace return to the saved tree position. In the allocation viewer, the costs of the synthetic allocated-type leaves are charged to the allocating call site, so the flat view answers "which line of my code allocates"; the u unit toggle re-ranks the flat rows in place. The invalidations viewer has no flat view, since its counts are not a cost distribution.

Jump to Editor

Pressing e opens the selected frame — or, inside the type inspector, the inspected method — in the user's editor at the exact file and line, suspending the interface while the editor runs and restoring it afterwards. The editor is resolved like Base.edit, from $JULIA_EDITOR, $VISUAL, or $EDITOR. Editors that return immediately (e.g. GUI editors like VS Code) bring the viewer right back while the file opens in the background.

Frame Search

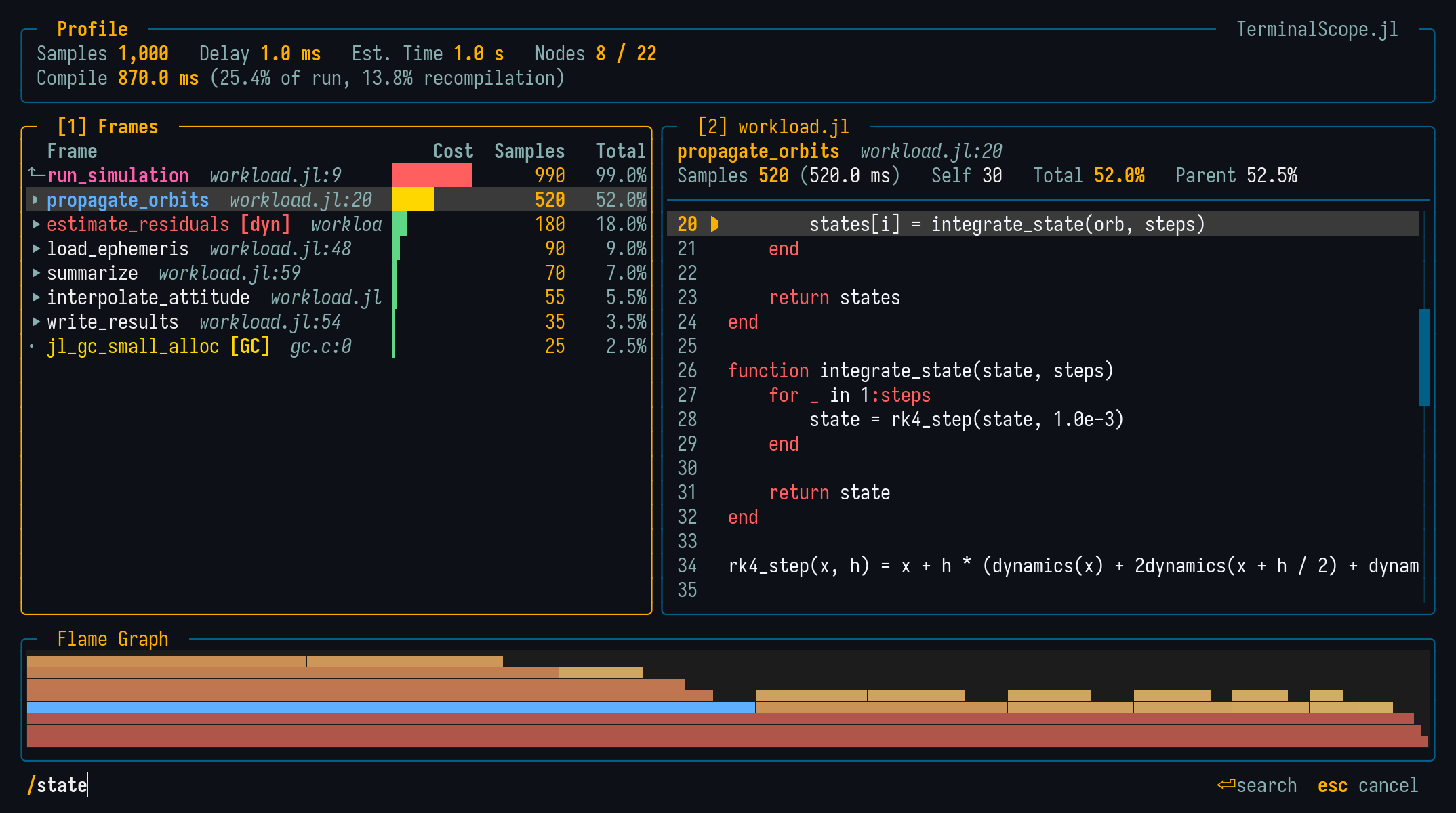

Pressing / opens a search prompt in the status bar, styled after the Neovim command line:

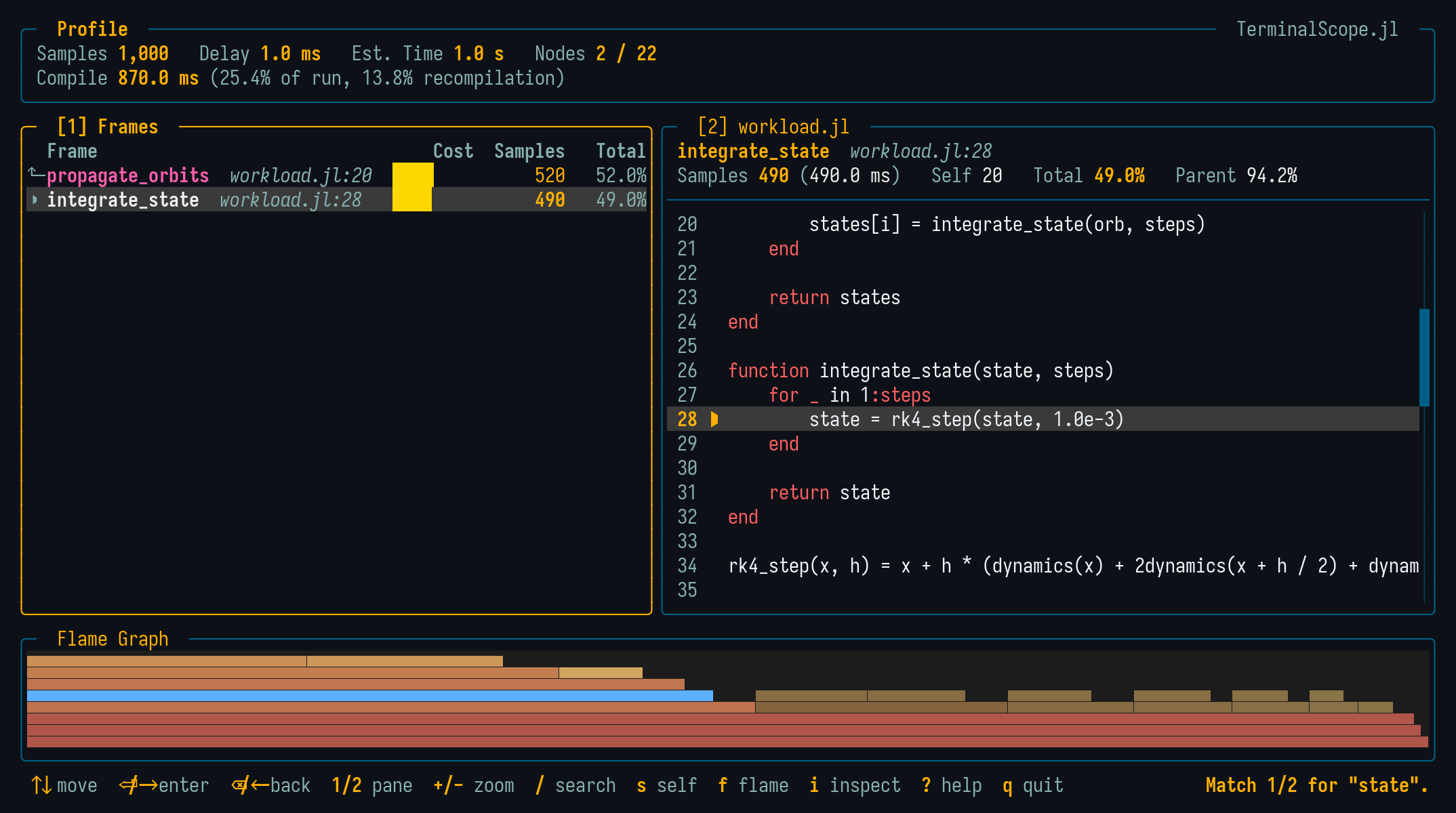

Confirming with Enter collects every frame of the whole profile tree whose name or source location matches the query and navigates the viewer to the first match — descending or ascending levels as needed, with the cursor placed on the matching row. The query is a case-insensitive regular expression, so ^step!$ matches a frame name exactly and solve|integrate matches either name; a query that is not a valid pattern (e.g. an unbalanced [) falls back to a plain case-insensitive substring match. n and N then cycle through the matches, wrapping around, while the status bar reports the current position:

Esc cancels the prompt without searching, and Backspace edits the query while it is open. Since the search covers the entire tree, it is the fastest way to answer "where is my function in this profile" without descending manually.

Themes

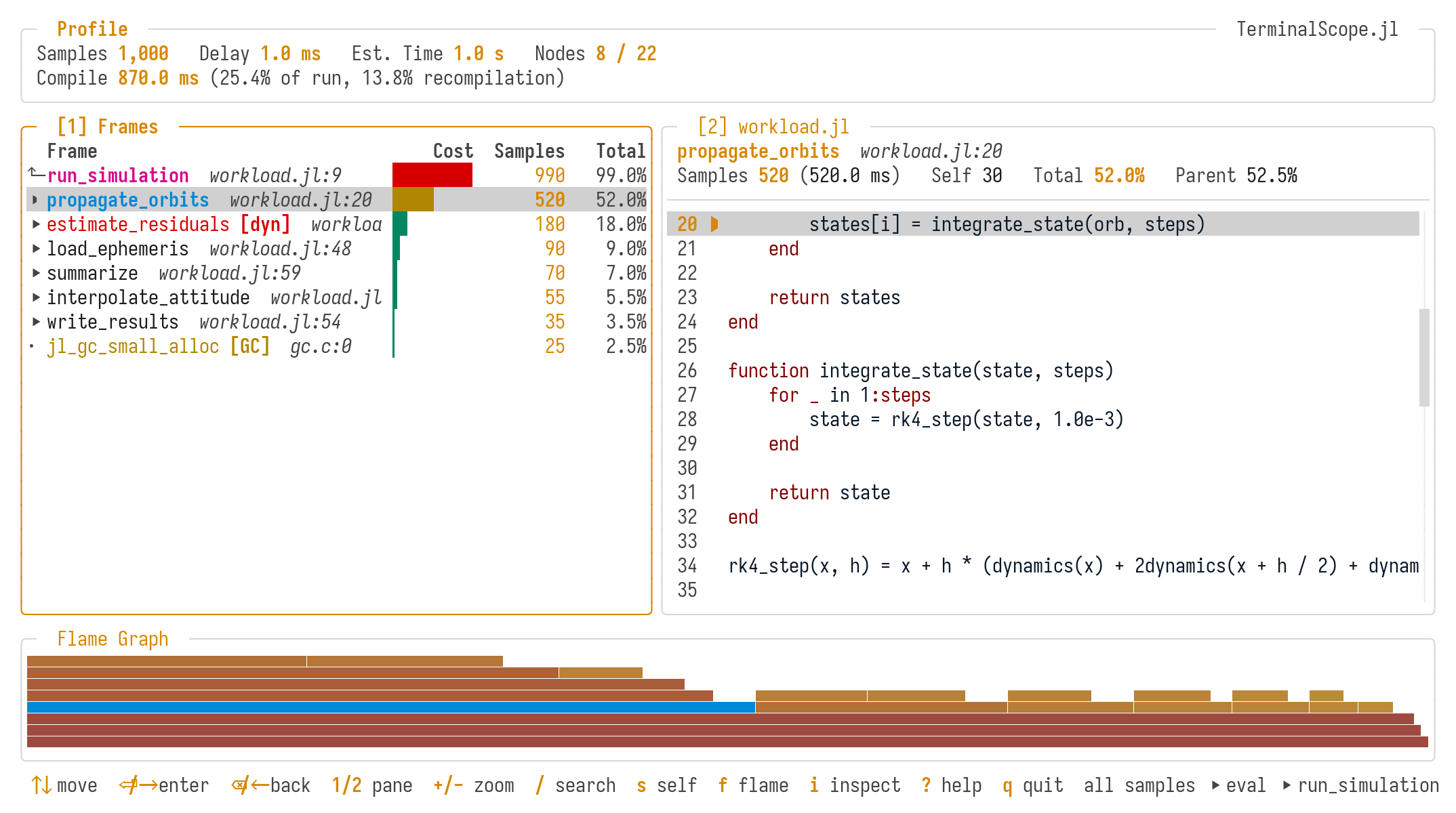

The viewers ship with a dark and a light theme, matching the SatelliteAnalysis.jl presentation palette: navy structure, amber chrome, cyan data emphasis, and magenta secondary emphasis.

The default variant is :dark. It can be changed for the session:

TerminalScope.theme!(:light)

or per invocation, since every function entry point accepts a theme keyword:

scope_profile(g; theme = :light)

Customizing the Colors

Every color of both variants can be overridden through Preferences.jl:

# Colors accept an xterm-256 code (0-255) or a hex string (quantized to xterm-256).
TerminalScope.set_theme_color!(:dark, :accent, "#38BDF8")
TerminalScope.set_theme_color!(:light, :bg, 255)

# The :selection slot is the background of the row under the cursor.
TerminalScope.set_theme_color!(:dark, :selection, 236)

# Restore the default palette of both variants.
TerminalScope.reset_theme_colors!()

The available slots are :bg, :border, :border_focus, :text, :text_dim, :text_bright, :primary, :secondary, :accent, :success, :warning, :error, :title, and :selection. The overrides are stored in the LocalPreferences.toml file of the active project and take effect after restarting Julia.

Reference

theme!(variant::Symbol) -> Symbol

set_theme_color!(
    variant::Symbol,
    slot::Symbol,
    color::Union{Integer, AbstractString}
) -> Nothing

julia> TerminalScope.set_theme_color!(:dark, :accent, "#38BDF8")

julia> TerminalScope.set_theme_color!(:light, :bg, 255)

reset_theme_colors!() -> Nothing

THEME_SLOTS

THEME_DEFAULTS

SELECTION_DEFAULTS
