TerminalScope.jl

This package provides an interactive terminal user interface (TUI) to diagnose the performance of Julia code. It bundles four analyses under one macro and one consistent drill-down interface:

  • Runtime profile: where the time is spent, from the sampling profiler;
  • Allocation profile: where the memory is allocated, including what was allocated;
  • Inference profile: where the compiler spends its time inferring types;
  • Invalidations: which method definitions invalidate previously compiled code.

On top of those, a type-instability inspector — in the spirit of Cthulhu.@descend — shows the source code annotated with the inferred types and lets the user descend through the call sites, directly from any profiled frame.

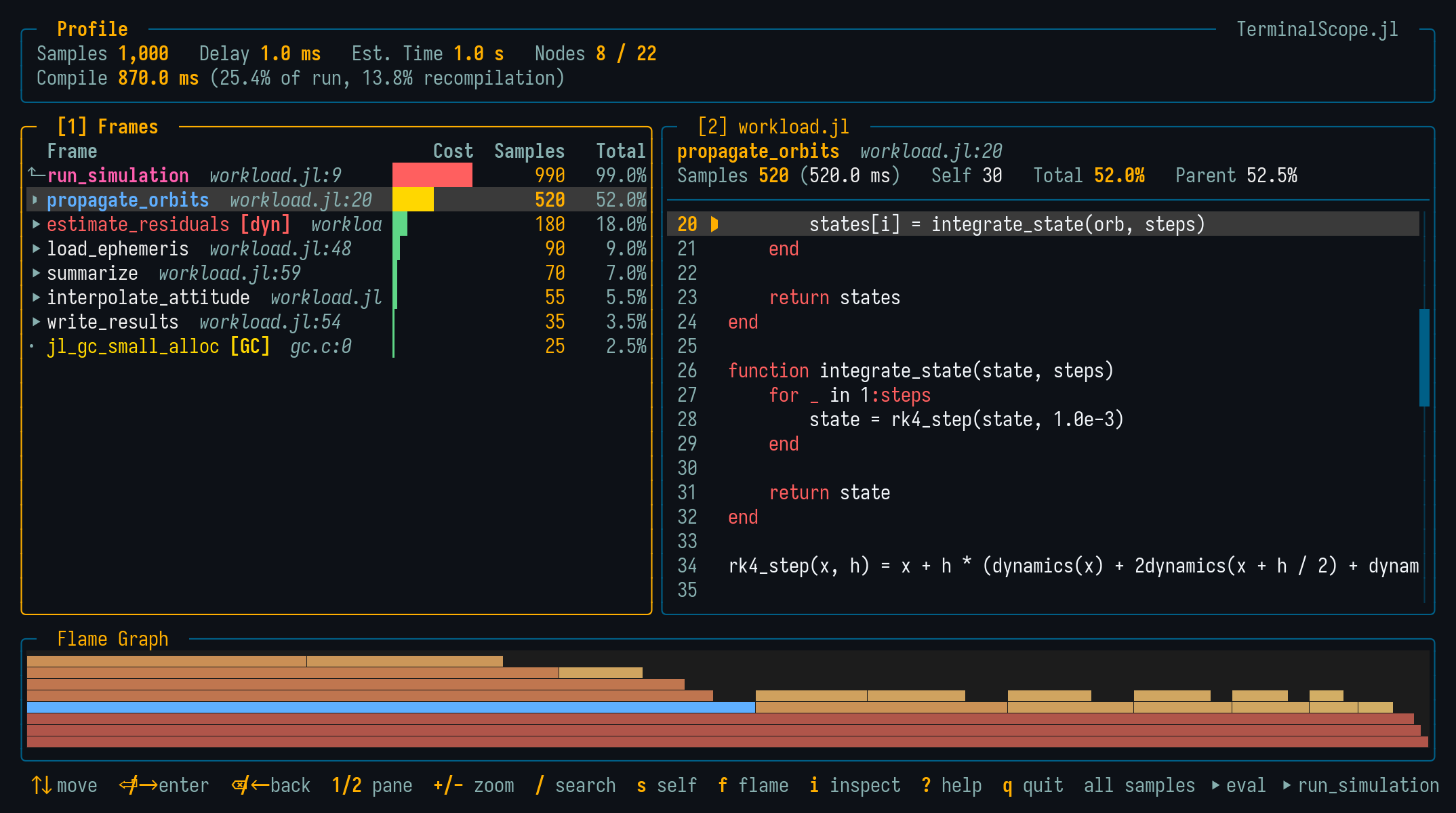

Runtime profile viewer

The viewers support the mouse (the wheel scrolls the hovered panel and a click selects a row), vim-style navigation keys, and whole-tree frame search with the / key.

Installation

This package can be installed using:

julia> using Pkg
julia> Pkg.add("TerminalScope")

Quick Start

All the analyses are reached through the macro @scope, whose first argument selects the mode:

using TerminalScope

@scope f(x)                          # Runtime profile (default mode).
@scope allocs f(x)                   # Allocation profile.
@scope inference f(x)                # Type-inference profile.
@scope invalidations using SomePkg   # Method invalidations.
@scope descend f(x)                  # Type-instability inspector.

Each mode opens a full-screen viewer that takes over the terminal until the user quits with the q key. The main view shows the frame list on the left and the source code of the selected row — updated live while navigating — on the right. See Navigation and Themes for the complete set of key bindings.

The corresponding function forms open the viewer on already-collected data: scope_profile, scope_allocs, scope_inference, scope_invalidations, and scope_descend.

Note

The type inspector and the invalidation analysis are backed by Cthulhu.jl and SnoopCompile.jl. Loading those packages invalidates compiled code of unrelated packages, so TerminalScope only loads them on the first use of the features that need them. Sessions that only use the profilers never pay that cost.

Manual Outline
