Text back-end examples

In the following, it is presented how the following matrix can be printed using the text back-end.

julia> data = Any[ 1    false      1.0     0x01 ;
                   2     true      2.0     0x02 ;
                   3    false      3.0     0x03 ;
                   4     true      4.0     0x04 ;
                   5    false      5.0     0x05 ;
                   6     true      6.0     0x06 ;]

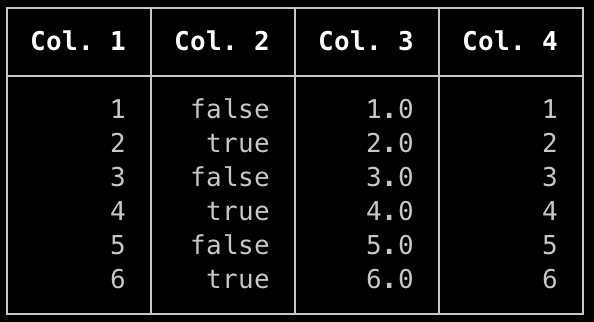

julia> pretty_table(data)

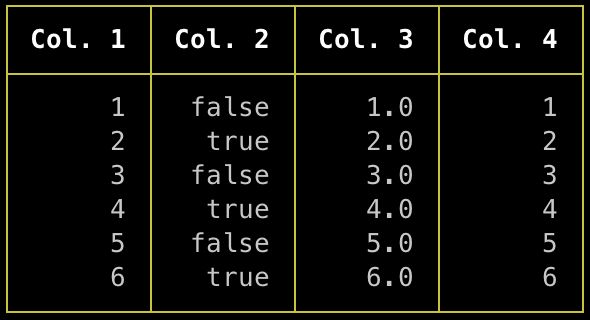

julia> pretty_table(data, border_crayon = crayon"yellow")

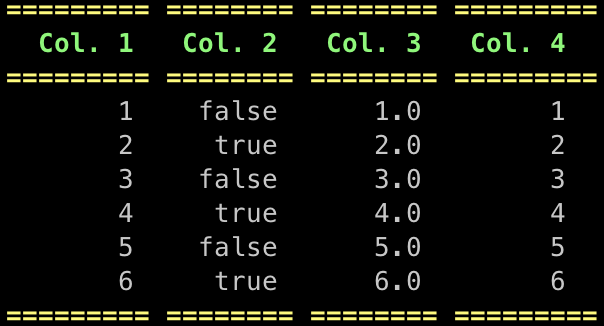

julia> pretty_table(data, tf = simple, border_crayon = crayon"bold yellow", header_crayon = crayon"bold green")

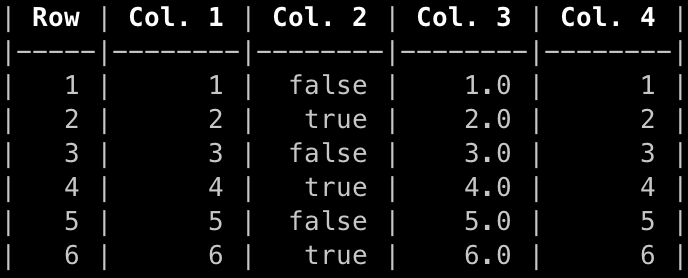

julia> pretty_table(data, tf = markdown, show_row_number = true)

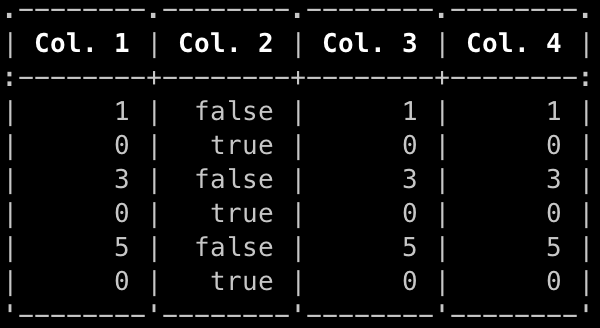

The following example shows how formatters can be used to change how elements are printed.

julia> formatter = (v,i,j) -> begin
           if j != 2
               return isodd(i) ? i : 0
           else
               return v
           end
       end

julia> pretty_table(data, tf = ascii_rounded, formatters = formatter)

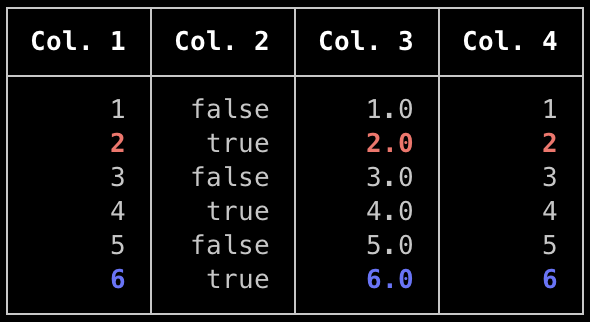

The following example indicates how highlighters can be used to highlight the lowest and highest element in the data considering the columns 1, 3, and 5:

julia> h1 = Highlighter( (data,i,j)->j in (1,3,4) && data[i,j] == maximum(data[2:end,[1,3,4]]),
                         bold       = true,
                         foreground = :blue )

julia> h2 = Highlighter( (data,i,j)->j in (1,3,4) && data[i,j] == minimum(data[2:end,[1,3,4]]),
                         bold       = true,
                         foreground = :red )

julia> pretty_table(data, highlighters = (h1,h2))

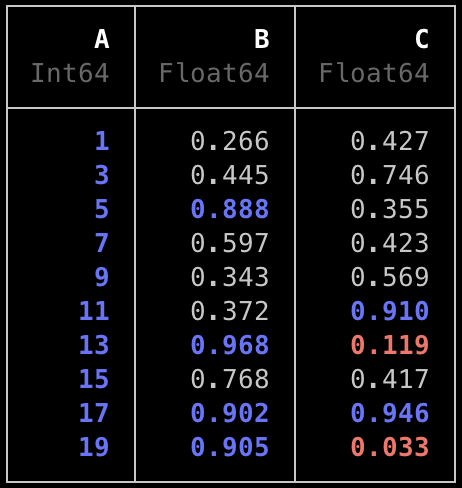

Since this package has support to the API defined by Tables.jl, then many formats, e.g DataFrames.jl, can be pretty printed:

julia> using DataFrames

julia> df = DataFrame(A = 1:2:20, B = rand(10), C = rand(10))

julia> pretty_table(df, formatters = ft_printf("%.3f", [2,3]), highlighters = (hl_lt(0.2), hl_gt(0.8)))

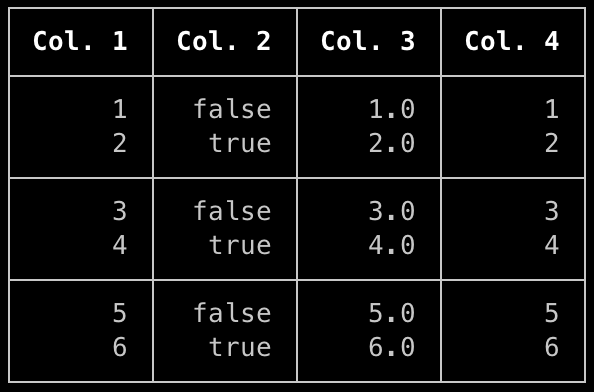

You can use body_hlines keyword to divide the table into interesting parts:

julia> pretty_table(data, body_hlines = [2,4])

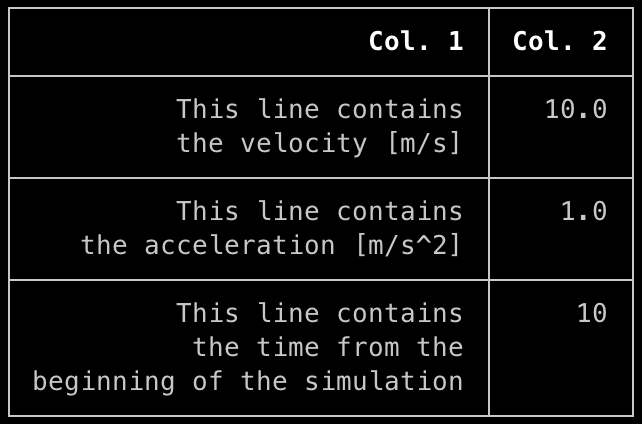

If you want to break lines inside the cells, then you can set the keyword linebreaks to true. Hence, the characters \n will cause a line break inside the cell.

julia> text = ["This line contains\nthe velocity [m/s]" 10.0;
               "This line contains\nthe acceleration [m/s^2]" 1.0;
               "This line contains\nthe time from the\nbeginning of the simulation" 10;]

julia> pretty_table(text, linebreaks = true, body_hlines = [1,2,3])

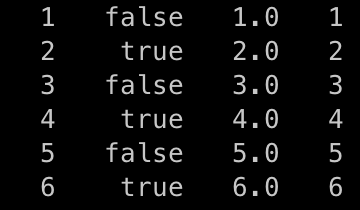

The keyword noheader can be used to suppres the header, which leads to a very simplistic, compact format.

julia> pretty_table(data, tf = borderless, noheader = true)

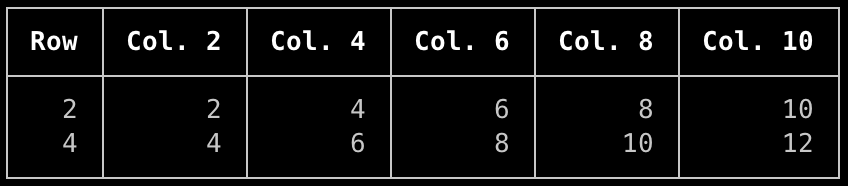

In the following, it is shown how the filters can be used to print only the even rows and columns:

julia> A = [ (0:1:10)'
             (1:1:11)'
             (2:1:12)'
             (3:1:13)'
             (4:1:14)' ]

julia> f_c(data,i) = i % 2 == 0

julia> f_r(data,i) = i % 2 == 0

julia> pretty_table(A, filters_row = (f_r,), filters_col = (f_c,), show_row_number = true)

By default, if the data is larger than the screen, then it will be cropped to fit it. This can be changed by using the keywords crop and screen_size.

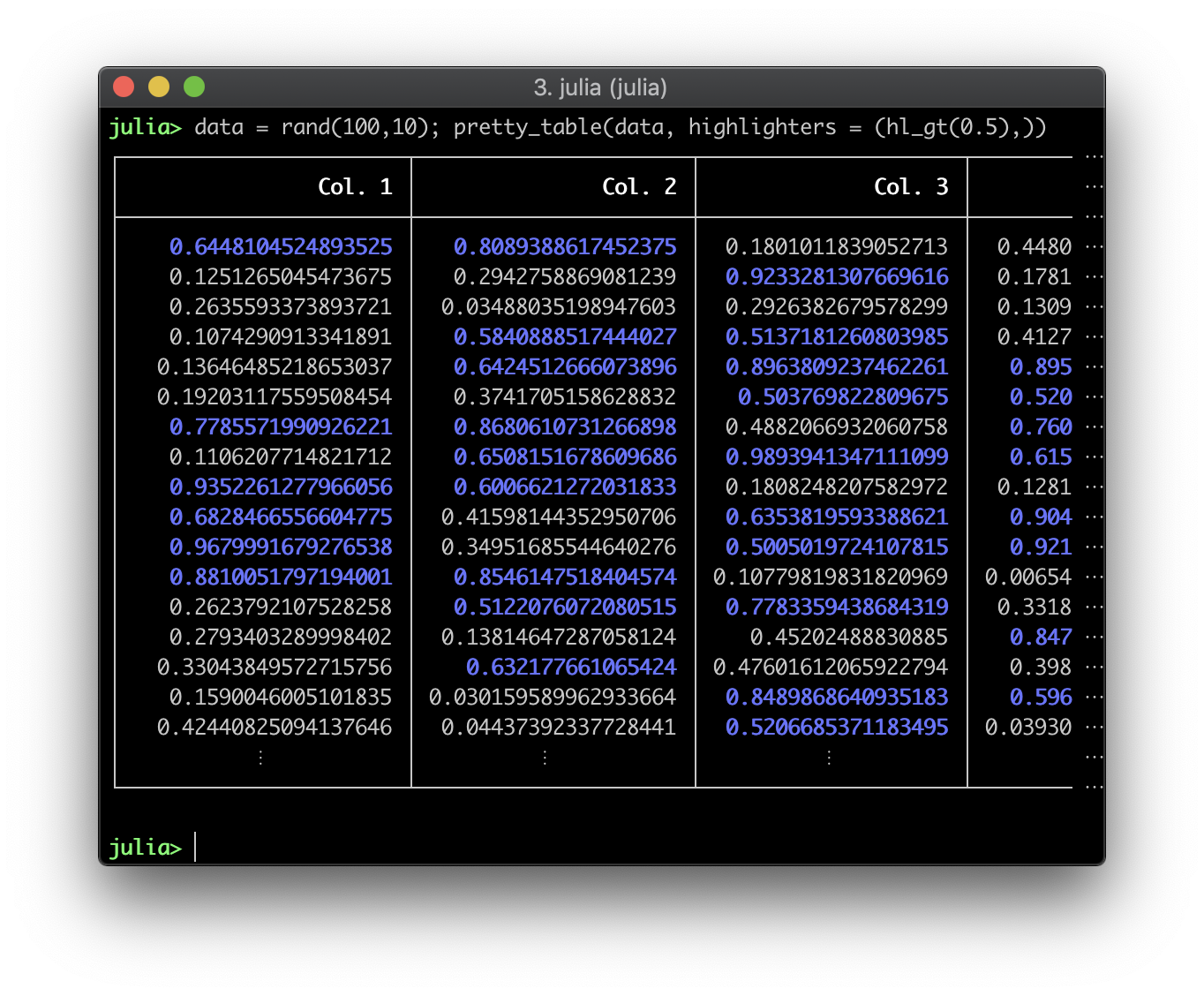

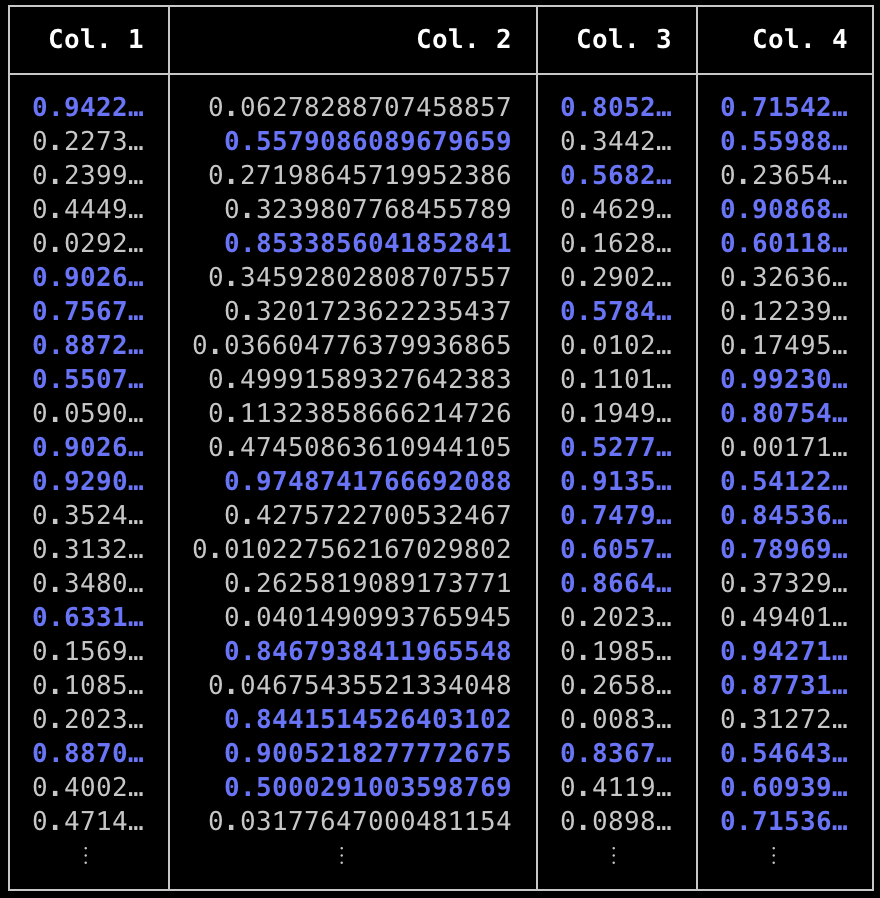

You can use the keyword columns_width to select the width of each column, so that the data is cropped to fit the available space.

julia> mat = rand(100,4)

julia> pretty_table(mat, highlighters = hl_gt(0.5), columns_width = [7,-1,7,8])

If you want to save the printed table to a file, you can do:

julia> open("output.txt", "w") do f
            pretty_table(f,data)
       end

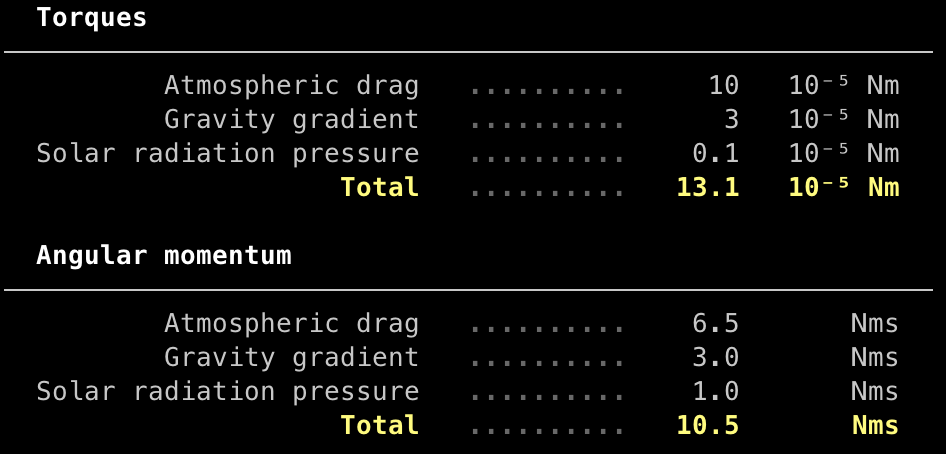

This package can also be used to create data reports in text format:

julia> data = ["Torques" "" "" "";
               "Atmospheric drag" "."^10 10 "10⁻⁵ Nm";
               "Gravity gradient" "."^10 3 "10⁻⁵ Nm";
               "Solar radiation pressure" "."^10 0.1 "10⁻⁵ Nm";
               "Total" "."^10 13.1 "10⁻⁵ Nm";
               "" "" "" ""
               "Angular momentum" "" "" "";
               "Atmospheric drag" "."^10 6.5 "Nms";
               "Gravity gradient" "."^10 3.0 "Nms";
               "Solar radiation pressure" "."^10 1.0 "Nms";
               "Total" "."^10 10.5 "Nms"]

julia> pretty_table(data, tf = borderless,
                    noheader = true,
                    cell_alignment = Dict( (1,1) => :l, (7,1) => :l ),
                    formatters = ft_printf("%10.1f", 2),
                    highlighters = (hl_cell( [(1,1);(7,1)], crayon"bold"),
                                    hl_col(2, crayon"dark_gray"),
                                    hl_row([5,11], crayon"bold yellow")),
                    body_hlines = [1,7],
                    body_hlines_format = Tuple('─' for _ = 1:4) )

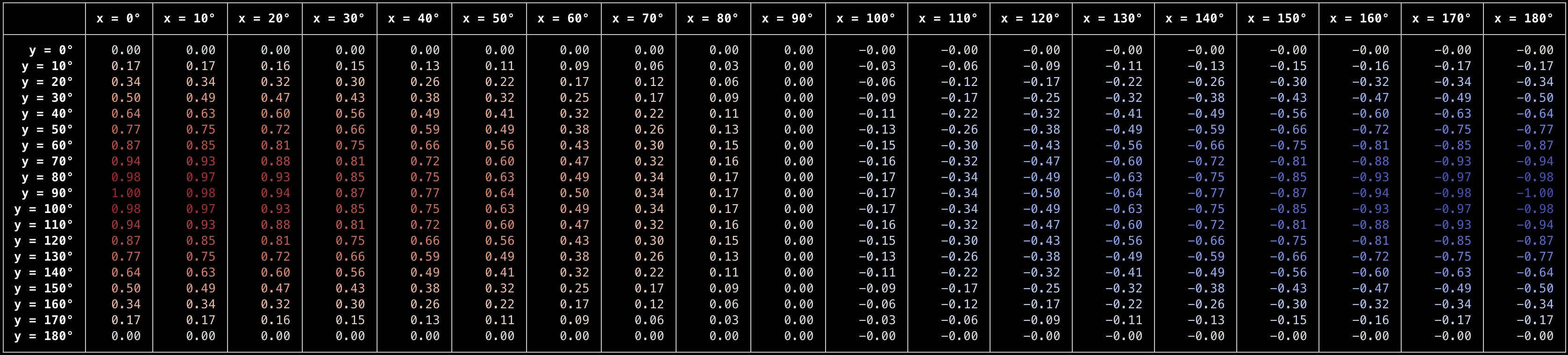

The highlighters API can be used to dynamically highlight cells. In the next example, it is shown how the package ColorSchemes.jl can be integrated to build a table with a color map (the following example will be displayed better in a terminal that supports 24-bit color):

julia> using ColorSchemes

julia> data = [ sind(x)*cosd(y) for x in 0:10:180, y in 0:10:180 ]

julia> hl = Highlighter((data,i,j)->true,
                        (h,data,i,j)->begin
                             color = get(colorschemes[:coolwarm], data[i,j], (-1,1))
                             return Crayon(foreground = (round(Int,color.r*255),
                                                         round(Int,color.g*255),
                                                         round(Int,color.b*255)))
                         end)

julia> pretty_table(data, ["x = $(x)°" for x = 0:10:180],
                    row_names = ["y = $(y)°" for y = 0:10:180],
                    highlighters = hl,
                    formatters = ft_printf("%.2f"))
