LaTeX back-end

The following options are available when the LaTeX backend is used. Those can be passed as keywords when calling the function pretty_table:

• highlighters: An instance of LatexHighlighter or a tuple with a list of LaTeX highlighters (see the section LaTeX highlighters).
• hlines: A vector of Int indicating row numbers in which an additional horizontal line should be drawn after the row. Notice that numbers lower than 1 and equal or higher than the number of rows will be neglected.
• longtable_footer: The string that will be drawn in the footer of the tables before a page break. This only works if table_type is :longtable. If it is nothing, then no footer will be used. (Default = nothing)
• noheader: If true, then the header will not be printed. Notice that all keywords and parameters related to the header and sub-headers will be ignored. (Default = false)
• nosubheader: If true, then the sub-header will not be printed, i.e. the header will contain only one line. Notice that this option has no effect if noheader = true. (Default = false)
• row_number_vline: If true, then a vertical line will be draw after the row number column. This only works if show_row_number is true. (Default = false)
• show_row_number: If true, then a new column will be printed showing the row number. (Default = false)
• table_type: Select which LaTeX environment will be used to print the table. Currently supported options are :tabular for tabular or :longtable for longtable. (Default = :tabular)
• tf: An instance of the structure LatexTableFormat that defines the general format of the LaTeX table.
• vlines: This variable controls where the vertical lines will be drawn. It can be :all, :none or a vector of integers. In the first case (the default behavior), all vertical lines will be drawn. In the second case, no vertical line will be drawn. In the third case, the vertical lines will be drawn only after the columns in the vector. Notice that the left border will be drawn if 0 is in vlines. Furthermore, it is important to mention that the column number in this variable is related to the printed columns. Thus, it is affected by filters, and by the columns added using the variable show_row_number. Finally, for convenience, the left and right border can be drawn by adding the symbols :begin and :end to this vector, respectively. (Default = :none)

LaTeX highlighters

A set of highlighters can be passed as a Tuple to the highlighters keyword. Each highlighter is an instance of the structure LatexHighlighter. It contains the following two fields:

• f: Function with the signature f(data,i,j) in which should return true if the element (i,j) in data must be highlighted, or false otherwise.
• fd: A function with the signature f(data,i,j,str)::String in which data is the matrix, (i,j) is the element position in the table, and str is the data converted to string. This function must return a string that will be placed in the cell.

The function f has the following signature:

f(data, i, j)

in which data is a reference to the data that is being printed, i and j are the element coordinates that are being tested. If this function returns true, then the highlight style will be applied to the (i,j) element. Otherwise, the default style will be used.

Notice that if multiple highlighters are valid for the element (i,j), then the applied style will be equal to the first match considering the order in the Tuple highlighters.

If the function f returns true, then the function fd(data,i,j,str) will be called and must return the LaTeX string that will be placed in the cell.

If only a single highlighter is wanted, then it can be passed directly to the keyword highlighter without being inside a Tuple.

There are two helpers that can be used to create LaTeX highlighters:

LatexHighlighter(f::Function, envs::Union{String,Vector{String}})
LatexHighlighter(f::Function, fd::Function)

The first will apply recursively all the LaTeX environments in envs to the highlighted text whereas the second let the user select the desired decoration by specifying the function fd.

Thus, for example:

LatexHighlighter((data,i,j)->true, ["textbf", "small"])

will wrap all the cells in the table in the following environment:

\textbf{\small{<Cell text>}}

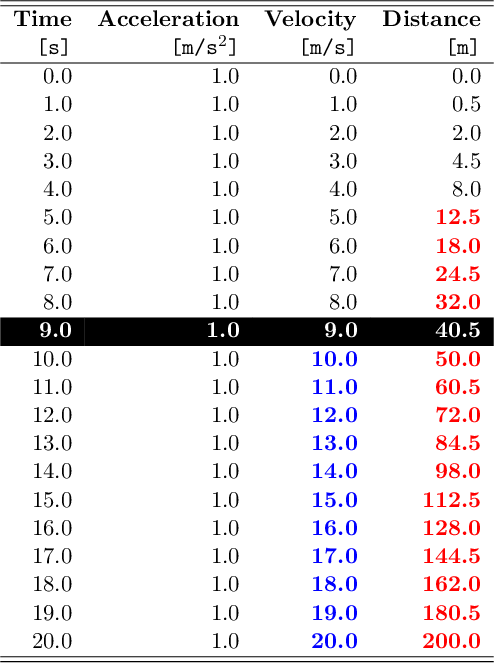

julia> t = 0:1:20;

julia> data = hcat(t, ones(length(t))*1, 1*t, 0.5.*t.^2);

julia> header = ["Time" "Acceleration" "Velocity" "Distance";
                  "[s]"  "[m/s\$^2\$]"    "[m/s]"      "[m]"];

julia> hl_v = LatexHighlighter( (data,i,j)->(j == 3) && data[i,3] > 9, ["color{blue}","textbf"]);

julia> hl_p = LatexHighlighter( (data,i,j)->(j == 4) && data[i,4] > 10, ["color{red}", "textbf"])

julia> hl_e = LatexHighlighter( (data,i,j)->(i == 10), ["cellcolor{black}", "color{white}", "textbf"])

julia> pretty_table(data, header, backend = :latex, highlighters = (hl_e, hl_p, hl_v))

LaTeX table formats

The following table formats are available when using the LaTeX back-end:

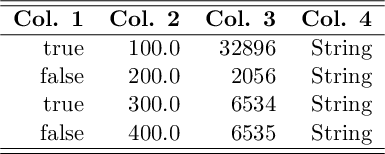

latex_default (Default)

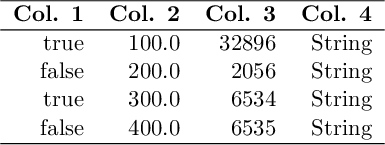

latex_simple
