PrettyTables.jl

PrettyTables.jl prints data in formatted tables. It was originally inspired by the functionality provided by ASCII Tables.

The same table can be rendered by the following back ends:

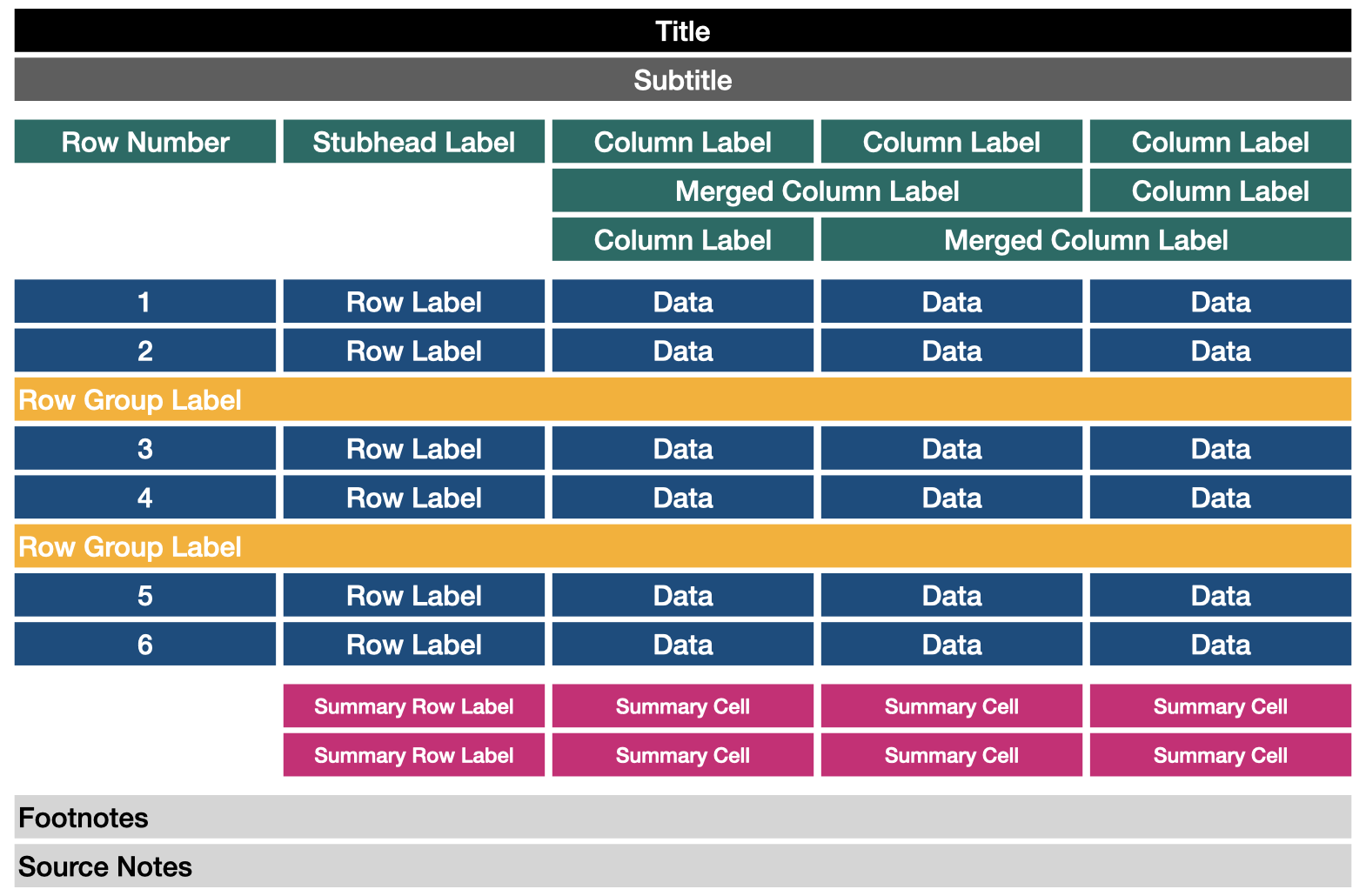

PrettyTables.jl allows printing the data together with some table sections, which can be modified by the user to obtain the desired output. The sections currently available are:

This design is heavily inspired by the R package gt, but the API is quite different due to the differences between the R and Julia languages.

Installation

julia> using Pkg

julia> Pkg.add("PrettyTables")

Example

The following example shows some of the features available in PrettyTables.jl. The highlighters, the table format, and the table style are defined using the backend-agnostic types Highlighter, TableFormat, and TableStyle. Hence, the same configuration can be used with every back end.

# == Creating the Table ====================================================================

v1_t = 0:5:20
v1_a = ones(length(v1_t)) * 1.0
v1_v = @. 0 + v1_a * v1_t
v1_d = @. 0 + v1_a * v1_t^2 / 2

v2_t = 0:5:20
v2_a = ones(length(v2_t)) * 0.75
v2_v = @. 0 + v2_a * v2_t
v2_d = @. 0 + v2_a * v2_t^2 / 2

table = [
    v1_t v1_a v1_v v1_d
    v2_t v2_a v2_v v2_d
]

# == Configuring the Table =================================================================

title = "Table 1. Data obtained from the test procedure."

subtitle = "Comparison between two vehicles"

column_labels = [
    [EmptyCells(2), MultiColumn(2, "Estimated Data")],
    ["Time (s)", "Acceleration", "Velocity", "Position"],
    [
        styled"{(foreground=gray):[s]}",
        styled"{(foreground=gray):[m / s²]}",
        styled"{(foreground=gray):[m / s]}",
        styled"{(foreground=gray):[m]}",
    ],
]

row_group_labels = [
    1 => "Vehicle #1",
    6 => "Vehicle #2"
]

summary_rows = [
    (data, j) -> maximum(@views data[ 1:5, j]),
    (data, j) -> maximum(@views data[6:10, j]),
]

summary_row_labels = [
    "Max. for Vehicle #1",
    "Max. for Vehicle #2",
]

footnotes = [
    (:column_label, 1, 3) => "Estimated data based on the acceleration measurement."
]

highlighters = [
    Highlighter(
        (data, i, j) -> (j == 3) && (data[i, j] > 10),
        Face(; weight = :bold, foreground = :red)
    ),
    Highlighter(
        (data, i, j) -> (j == 4) && (data[i, j] > 10),
        Face(; weight = :bold, foreground = :blue)
    ),
]

table_format = TableFormat(; @no_vertical_lines)

style = TableStyle(;
    column_label                   = Face(; weight = :bold),
    first_line_merged_column_label = Face(;
        weight = :bold, foreground = :yellow, underline = true
    ),
    footnote                       = Face(; foreground = :cyan),
    row_group_label                = Face(; weight = :bold, foreground = :magenta),
    subtitle                       = Face(; slant = :italic),
    title                          = Face(; weight = :bold, foreground = :yellow),
)

julia> pretty_table(
    table;
    column_labels,
    footnotes,
    highlighters,
    row_group_labels,
    style,
    subtitle,
    summary_row_labels,
    summary_rows,
    table_format,
    title,
)

Passing backend = :html to the same call renders the table in HTML:

pretty_table(
    HTML,
    table;
    column_labels,
    footnotes,
    highlighters,
    row_group_labels,
    style,
    subtitle,
    summary_row_labels,
    summary_rows,
    table_format,
    title,
)

Where to Go Next

• Quick Start: the essential commands to print a table.
• Usage: the keywords available in every back end and the specification of the table sections, formatters, and highlighters.
• Faces: how the decorations are described using the faces of StyledStrings.jl.
• Table Format and Style: how to configure the table lines and the decoration of each section once for every back end.
• The pages in Back Ends: the options specific to each back end and some examples.
